🔢 Obsidian Flow Atlas EA – Complete Settings & Configuration Guide
Obsidian Flow Atlas EA is an advanced automated trading Expert Advisor built around a highly customizable trading and visual-analysis framework. Its configuration combines prop-firm drawdown protection, economic-news controls, XAUUSD strategy management, automatic position sizing, Take Profit and Stop Loss management, trailing protection, execution filters and a sophisticated visual dashboard.
The settings shown in the supplied panels provide detailed control over both trading behavior and chart presentation. Below is a complete parameter-by-parameter explanation, with all displayed values, numbers, percentages, colors, and configuration details preserved.

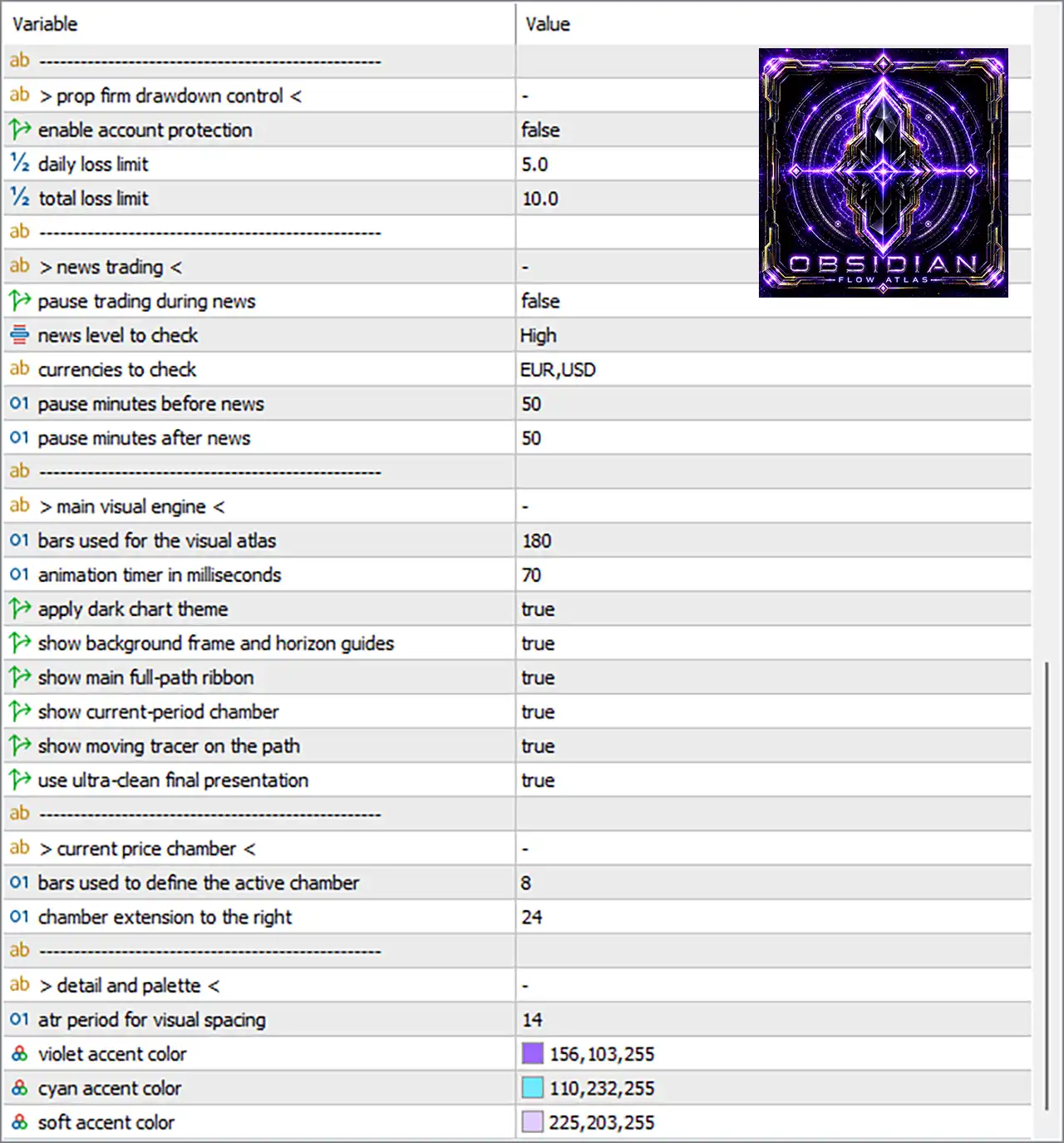

01 | Prop Firm Drawdown Control
🔹 Prop firm drawdown control = - — Section heading for the account-protection parameters designed for prop-firm-style drawdown management.
🔹 Enable account protection = false — Disables the account-level drawdown protection system in the current configuration.
🔹 Daily loss limit = 5.0 — Sets the configured maximum daily loss threshold to 5.0.
🔹 Total loss limit = 10.0 — Sets the configured maximum overall loss threshold to 10.0.
02 | News Trading
🔹 News trading = - — Section heading for the economic-news trading controls.
🔹 Pause trading during news = false — Disables automatic trading pauses around economic news in the current configuration.
🔹 News level to check = High — Sets High as the minimum news-impact level to monitor when the news filter is active.
🔹 Currencies to check = EUR,USD — Configures the EA to monitor economic events associated with EUR and USD.
🔹 Pause minutes before news = 50 — Configures a trading pause beginning 50 minutes before a qualifying news event when news protection is enabled.
🔹 Pause minutes after news = 50 — Configures trading to remain paused for 50 minutes after a qualifying news event when news protection is enabled.
03 | Main Visual Engine
🔹 Main visual engine = - — Section containing the parameters controlling the EA's visual atlas, chart animation, and presentation.
🔹 Bars used for the visual atlas = 180 — Uses 180 bars as the visual-data range for the atlas display.
🔹 Animation timer in milliseconds = 70 — Sets the visual animation timer to 70 milliseconds, controlling the refresh/animation interval.
🔹 Apply dark chart theme = true — Enables the dark chart presentation theme.
🔹 Show background frame and horizon guides = true — Displays the background frame and horizon guide elements within the visual interface.
🔹 Show main full-path ribbon = true — Displays the main full-path ribbon used by the visual engine.
🔹 Show current-period chamber = true — Displays the chamber representing the current trading/analysis period.
🔹 Show moving tracer on the path = true — Enables the moving tracer animation along the visual path.
🔹 Use ultra-clean final presentation = true — Enables the EA's ultra-clean presentation mode for a more polished visual interface.
04 | Current Price Chamber
🔹 Current price chamber = - — Section controlling the active/current price chamber displayed by the visual engine.
🔹 Bars used to define the active chamber = 8 — Uses 8 bars to define the active price chamber.
🔹 Chamber extension to the right = 24 — Extends the active chamber 24 units/bars to the right on the chart.
05 | Detail and Palette
🔹 Detail and palette = - — Section controlling visual spacing and accent-color parameters.
🔹 ATR period for visual spacing = 14 — Uses an ATR period of 14 to calculate visual spacing within the chart presentation.
🔹 Violet accent color = 156,103,255 — Sets the violet accent color to RGB 156,103,255.
🔹 Cyan accent color = 110,232,255 — Sets the cyan accent color to RGB 110,232,255.
🔹 Soft accent color = 225,203,255 — Sets the soft accent color to RGB 225,203,255.

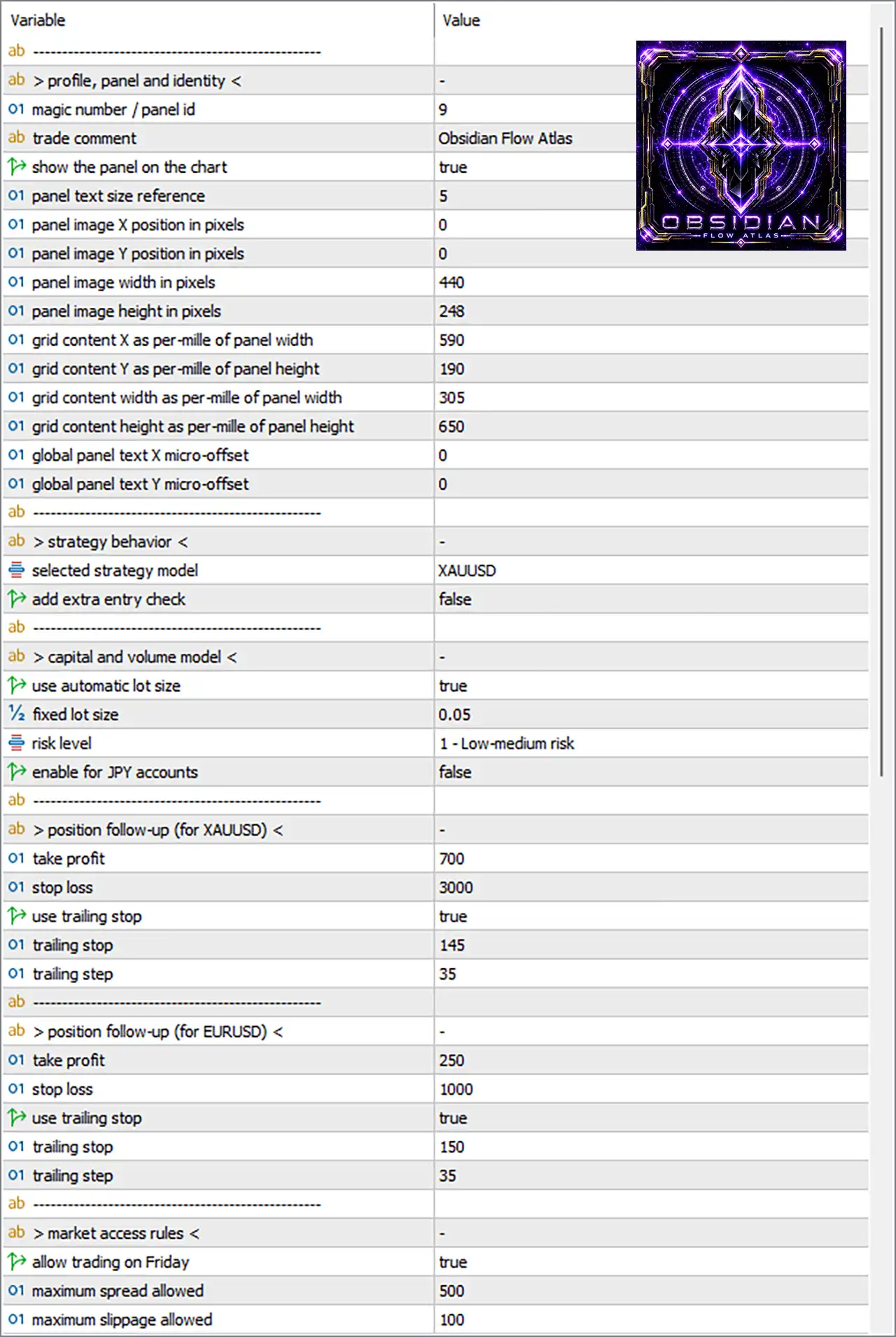

06 | Profile, Panel and Identity
🔹 Profile, panel and identity = - — Section controlling EA identification, panel positioning, dimensions, and chart-interface layout.
🔹 Magic number / panel id = 9 — Uses 9 as the Magic Number/panel identifier for the EA's trades and interface.
🔹 Trade comment = Obsidian Flow Atlas — Uses Obsidian Flow Atlas as the trade comment attached to the EA's orders.
🔹 Show the panel on the chart = true — Displays the Obsidian Flow Atlas information panel directly on the trading chart.
🔹 Panel text size reference = 5 — Sets the panel text-size reference to 5.
🔹 Panel image X position in pixels = 0 — Positions the panel image at an X-coordinate of 0 pixels.
🔹 Panel image Y position in pixels = 0 — Positions the panel image at a Y-coordinate of 0 pixels.
🔹 Panel image width in pixels = 440 — Sets the panel image width to 440 pixels.
🔹 Panel image height in pixels = 248 — Sets the panel image height to 248 pixels.
🔹 Grid content X as per-mille of panel width = 590 — Sets the grid-content horizontal position to 590 per-mille of the panel width.
🔹 Grid content Y as per-mille of panel height = 190 — Sets the grid-content vertical position to 190 per-mille of the panel height.
🔹 Grid content width as per-mille of panel width = 305 — Sets the grid-content width to 305 per-mille of the panel width.
🔹 Grid content height as per-mille of panel height = 650 — Sets the grid-content height to 650 per-mille of the panel height.
🔹 Global panel text X micro-offset = 0 — Applies a horizontal text offset of 0.
🔹 Global panel text Y micro-offset = 0 — Applies a vertical text offset of 0.
07 | Strategy Behavior
🔹 Strategy behavior = - — Section controlling the selected trading model and additional entry filtering.

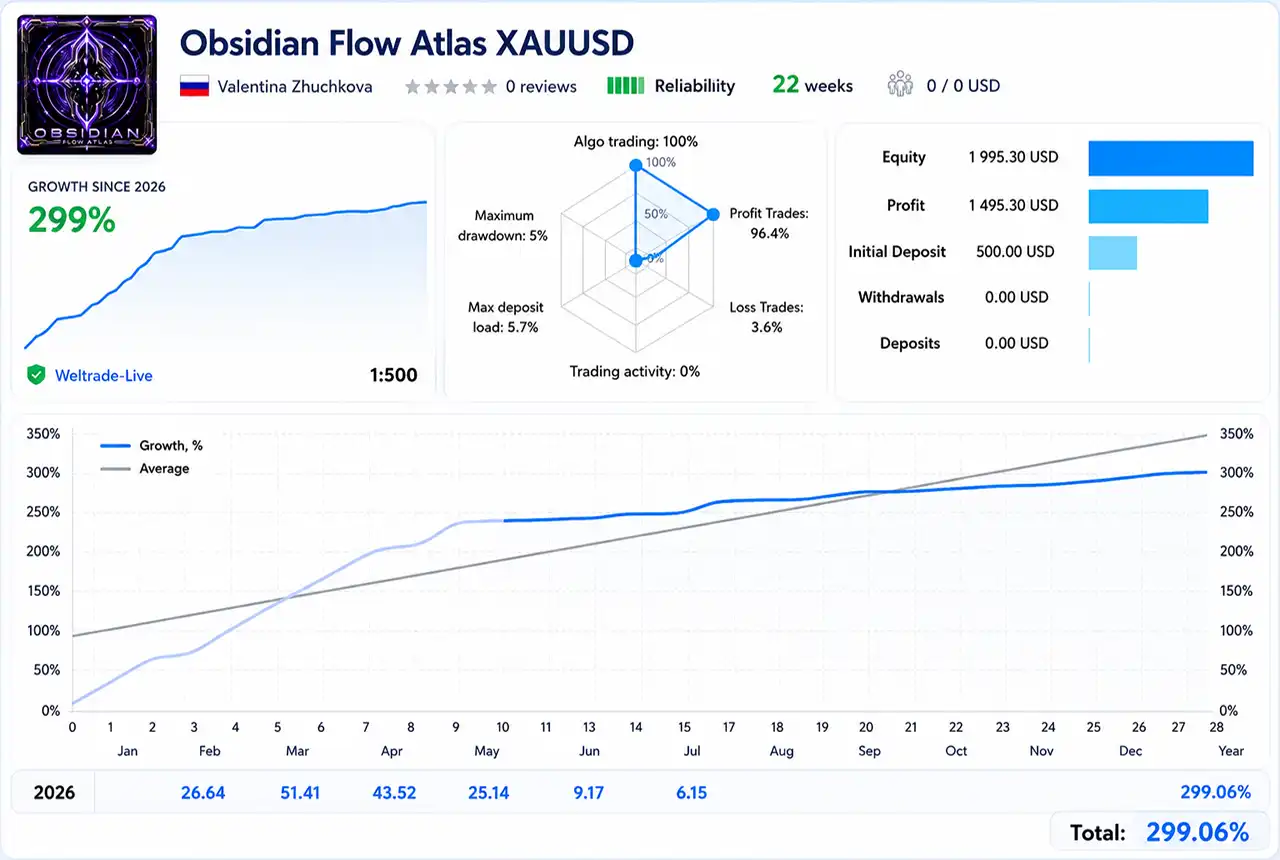

🔹 Selected strategy model = XAUUSD — Selects XAUUSD as the active strategy model, indicating the configuration is designed around Gold/USD trading.
🔹 Add extra entry check = false — Disables the additional entry-validation check.
08 | Capital and Volume Model
🔹 Capital and volume model = - — Section controlling automatic lot sizing and account-risk configuration.
🔹 Use automatic lot size = true — Enables automatic position-size calculation.
🔹 Fixed lot size = 0.05 — Sets the fixed-lot reference value to 0.05 lots when fixed sizing is used.
🔹 Risk level = 1 - Low-medium risk — Selects risk profile 1 - Low-medium risk.
🔹 Enable for JPY accounts = false — Disables the specific configuration for JPY-denominated accounts.
09 | Position Follow-Up – XAUUSD
🔹 Position follow-up (for XAUUSD) = - — Section controlling post-entry management for XAUUSD positions.
🔹 Take profit = 700 — Sets the XAUUSD Take Profit distance to 700 points.
🔹 Stop loss = 3000 — Sets the XAUUSD Stop Loss distance to 3000 points.
🔹 Use trailing stop = true — Enables trailing Stop Loss management for XAUUSD positions.
🔹 Trailing stop = 145 — Sets the XAUUSD trailing-stop distance to 145 points.
🔹 Trailing step = 35 — Sets the XAUUSD trailing adjustment step to 35 points.

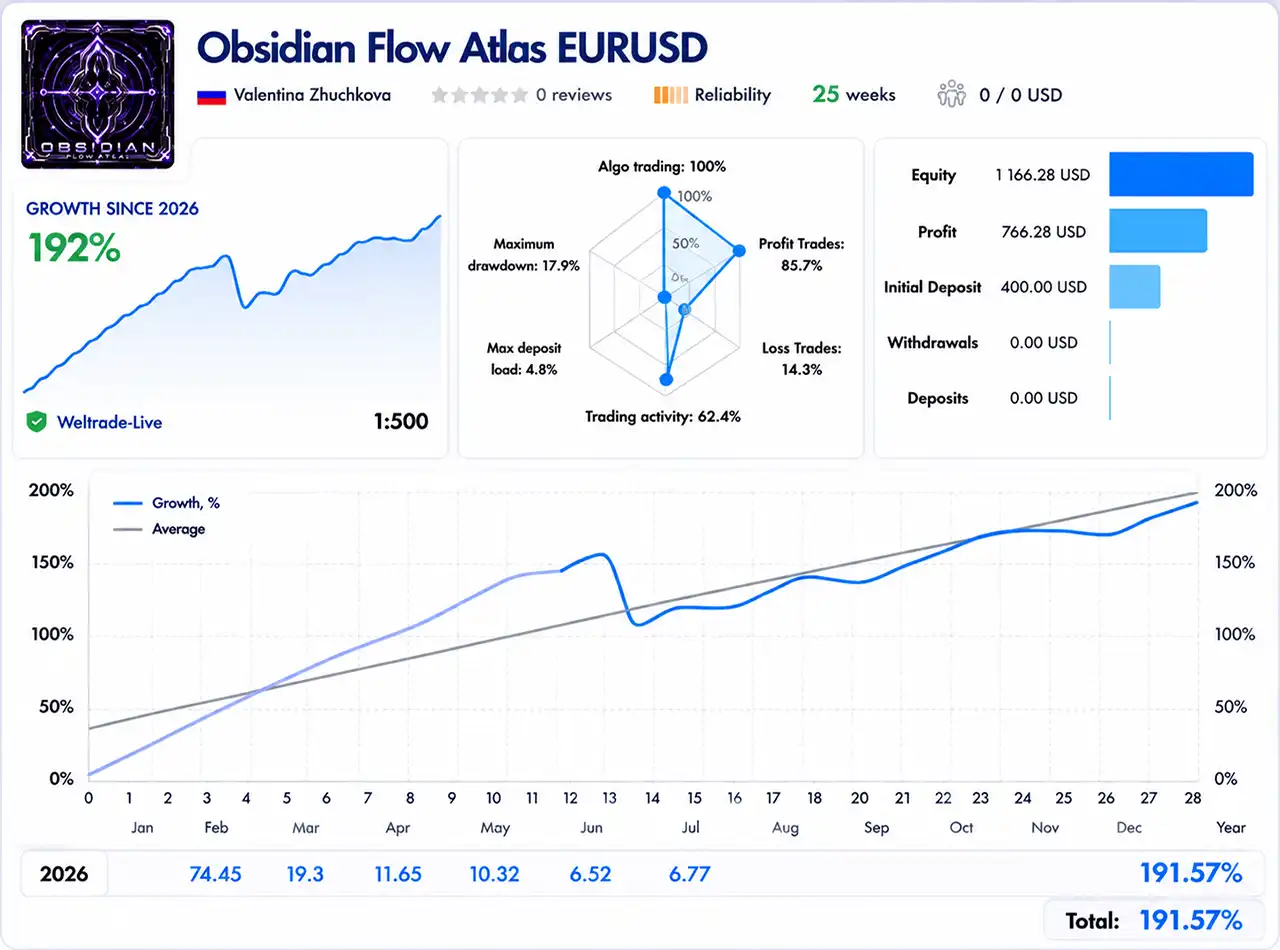

10 | Position Follow-Up – EURUSD
🔹 Position follow-up (for EURUSD) = - — Section controlling post-entry management for EURUSD positions.
🔹 Take profit = 250 — Sets the EURUSD Take Profit distance to 250 points.
🔹 Stop loss = 1000 — Sets the EURUSD Stop Loss distance to 1000 points.
🔹 Use trailing stop = true — Enables trailing Stop Loss management for EURUSD positions.
🔹 Trailing stop = 150 — Sets the EURUSD trailing-stop distance to 150 points.
🔹 Trailing step = 35 — Sets the EURUSD trailing adjustment step to 35 points.
11 | Market Access Rules
🔹 Market access rules = - — Section controlling trading-day access and execution-quality restrictions.
🔹 Allow trading on Friday = true — Allows the EA to open/manage trades on Friday.
🔹 Maximum spread allowed = 500 — Sets the maximum permitted spread to 500 points; trades exceeding this threshold can be rejected.
🔹 Maximum slippage allowed = 100 — Sets the maximum accepted slippage to 100 points.
🔢 Key Configuration Summary
🔹 Strategy Model = XAUUSD — The selected trading model is specifically configured for XAUUSD.
🔹 Automatic Lot Size = true — Automatic position sizing is enabled.
🔹 Fixed Lot Size = 0.05 — The fixed-lot reference is 0.05 lots.
🔹 Risk Level = 1 - Low-medium risk — The selected risk profile is 1 - Low-medium risk.
🔹 XAUUSD Take Profit = 700 points — XAUUSD positions use a 700-point Take Profit.
🔹 XAUUSD Stop Loss = 3000 points — XAUUSD positions use a 3000-point Stop Loss.
🔹 XAUUSD Trailing Stop = 145 points — XAUUSD trailing protection uses 145 points.
🔹 XAUUSD Trailing Step = 35 points — Trailing adjustments occur in 35-point steps.
🔹 EURUSD Take Profit = 250 points — EURUSD positions use a 250-point Take Profit.
🔹 EURUSD Stop Loss = 1000 points — EURUSD positions use a 1000-point Stop Loss.
🔹 EURUSD Trailing Stop = 150 points — EURUSD trailing protection uses 150 points.
🔹 EURUSD Trailing Step = 35 points — EURUSD trailing adjustments use 35-point steps.
🔹 Maximum Spread = 500 points — The configured spread ceiling is 500 points.
🔹 Maximum Slippage = 100 points — The configured execution slippage ceiling is 100 points.
🔹 News Protection = false — News-related trading pauses are currently disabled.
🔹 News Monitoring Level = High — The configured news-impact threshold is High.
🔹 News Currencies = EUR,USD — The news filter is configured for EUR and USD events.
🔹 News Pause Before = 50 minutes — The configured pre-news pause is 50 minutes.
🔹 News Pause After = 50 minutes — The configured post-news pause is 50 minutes.
🔢 Conclusion
Obsidian Flow Atlas EA combines automated trading controls with an unusually detailed visual presentation system. The current configuration focuses on XAUUSD, while also providing separate EURUSD position-management parameters.
The trading configuration uses automatic lot sizing = true, a 0.05 fixed-lot reference, and Risk Level 1 - Low-medium risk. For XAUUSD, the EA uses 700 points Take Profit, 3000 points Stop Loss, 145 points trailing distance, and 35 points trailing step. EURUSD uses 250 points Take Profit, 1000 points Stop Loss, 150 points trailing distance, and 35 points trailing step.
Account protection is configured with a 5.0 daily loss limit and 10.0 total loss limit, although Enable account protection = false, so these limits are not currently active through that protection switch.
The news system is similarly configured but currently disabled: pause trading during news = false, High news level, EUR,USD currencies, and 50 minutes before / 50 minutes after news.
From a visual perspective, the EA is configured for an extensive dark-themed interface using 180 bars, 70 milliseconds animation timing, an 8-bar active chamber, and 24 units of right-side chamber extension. The dashboard uses RGB 156,103,255, RGB 110,232,255, and RGB 225,203,255 as its primary accent colors.

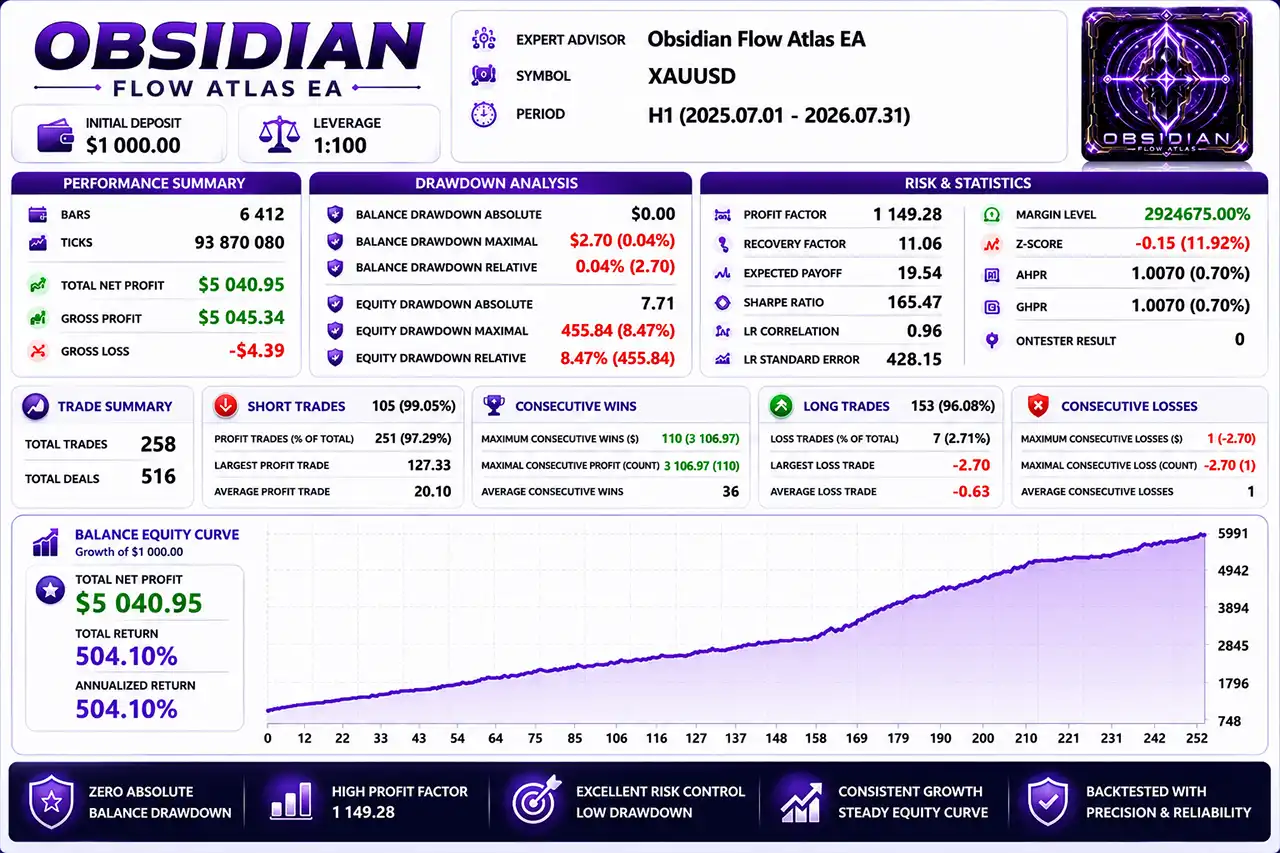

With a 500-point maximum spread and 100-point maximum slippage, the configuration also includes basic execution-quality safeguards. Traders should nevertheless backtest and demo-test the EA under their specific broker conditions, particularly because the displayed XAUUSD Stop Loss of 3000 points and the configured account-loss limits can have a substantial effect on overall risk.
🔢 FAQs
❓ What market is Obsidian Flow Atlas EA primarily configured for?
The selected strategy model is XAUUSD, making Gold/USD the primary configured trading market.
❓ What are the XAUUSD Take Profit and Stop Loss settings?
XAUUSD uses a 700-point Take Profit and 3000-point Stop Loss, with trailing enabled at 145 points and a 35-point trailing step.
❓ Does Obsidian Flow Atlas EA support automatic lot sizing?
Yes. Use automatic lot size = true. The fixed-lot reference is 0.05, while the selected risk profile is 1 - Low-medium risk.
❓ Does the EA currently pause trading around economic news?
No. Pause trading during news = false. However, the configuration is prepared to monitor High-impact news affecting EUR,USD, with 50 minutes before and 50 minutes after protection.
❓ What are the main execution limits?
The maximum permitted spread is 500 points, while the maximum permitted slippage is 100 points.
