🔢 Forex Play EA MT4 Settings Guide: Complete Inputs and Parameters Explained
Forex Play EA MT4 is an automated trading Expert Advisor designed for the MetaTrader 4 platform. Its trading configuration combines Bollinger Bands, moving average calculations, volatility-based entry conditions, and flexible order-management mechanisms.
The EA provides adjustable entry distances, additional trade confirmation, maximum order limits, hidden take-profit and stop-loss functionality, and automated money management. It also supports opposite-signal exits, moving average cross exits, and optional trailing-stop protection.

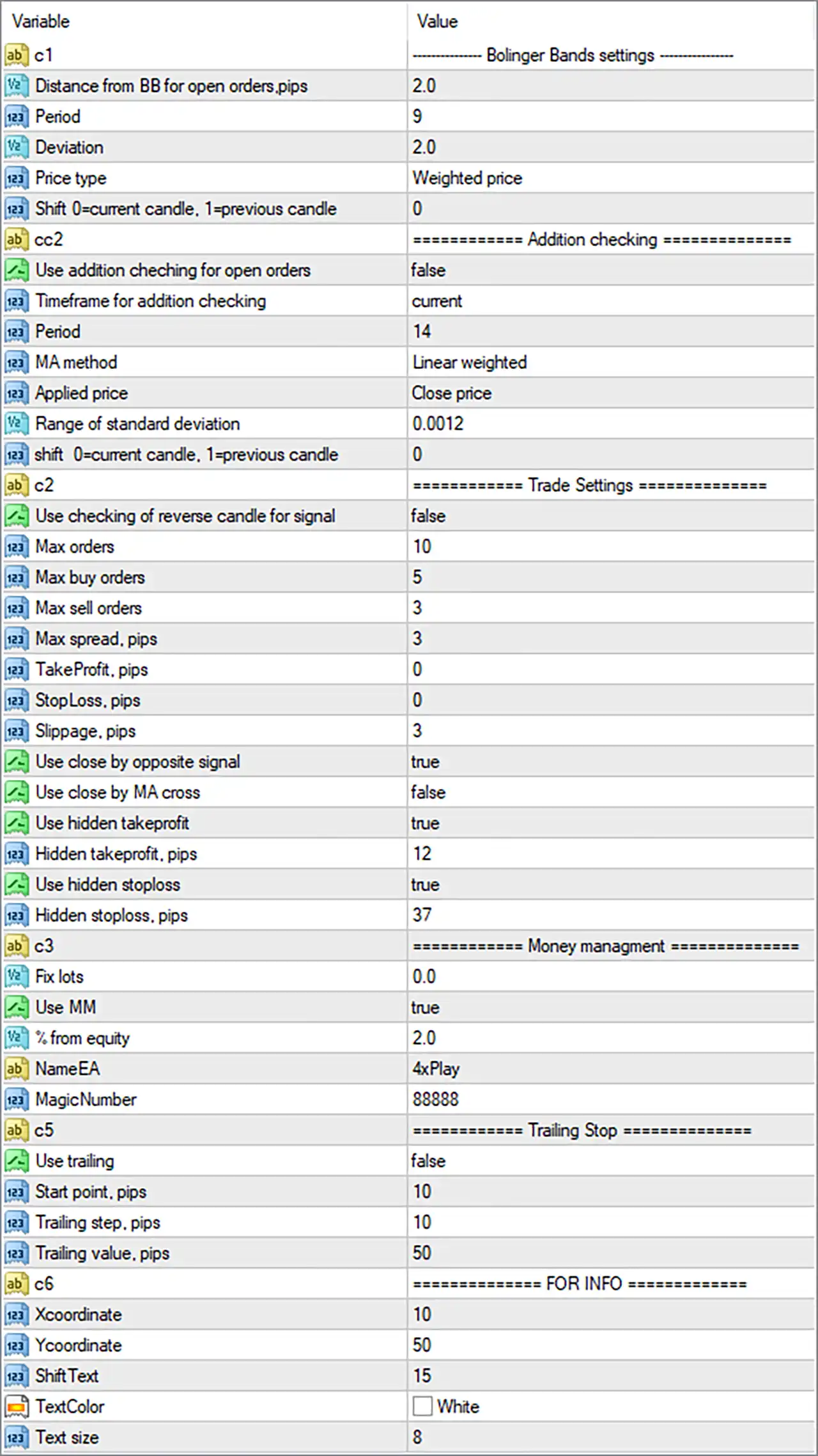

This comprehensive guide explains all the parameters displayed in the Forex Play EA input panel, preserving their original names and exact default values.

⚙️ Bollinger Bands Settings
🔹 Distance from BB for open orders,pips = 2.0: Sets the distance from the Bollinger Bands to 2.0 pips, defining how far the market price should be from the relevant band when the EA considers opening an order.
🔹 Period = 9: Sets the Bollinger Bands calculation period to 9, determining the number of price candles used to calculate the central moving average and volatility bands.
🔹 Deviation = 2.0: Sets the Bollinger Bands standard deviation multiplier to 2.0, controlling the width of the upper and lower bands around the central moving average.
🔹 Price type = Weighted price: Uses Weighted Price as the applied price for Bollinger Bands calculations, allowing the indicator to evaluate price data using a weighted-price formula rather than relying exclusively on closing prices.
🔹 Shift 0=current candle, 1=previous candle = 0: Sets the Bollinger Bands indicator shift to 0, meaning the EA uses the current candle's indicator data rather than the previous completed candle.
⚙️ Additional Checking Settings
🔹 Use addition checking for open orders = false: Disables additional confirmation checks when opening orders, allowing the EA to rely on its primary entry conditions without requiring this optional confirmation mechanism.
🔹 Timeframe for addition checking = current: Sets the additional checking timeframe to the current chart timeframe, meaning confirmation calculations use the timeframe of the chart where Forex Play EA MT4 is attached.
🔹 Period = 14: Sets the additional moving average calculation period to 14, determining the number of candles used for this confirmation indicator.
🔹 MA method = Linear weighted: Selects the Linear Weighted Moving Average (LWMA) calculation method, giving more weight to recent price data when calculating the moving average.
🔹 Applied price = Close price: Uses closing prices as the applied price for the additional moving average calculation, providing a consistent price reference for the confirmation indicator.
🔹 Range of standard deviation = 0.0012: Sets the standard deviation reference to 0.0012, configuring the volatility or price-deviation threshold used by the additional checking mechanism.
🔹 shift 0=current candle, 1=previous candle = 0: Sets the additional checking indicator shift to 0, meaning the EA references the current candle rather than the previous completed candle.
⚙️ Trade Settings
🔹 Use checking of reverse candle for signal = false: Disables reverse-candle confirmation, allowing the EA to generate trading signals without requiring an additional reversal-candle condition.
🔹 Max orders = 10: Sets the maximum number of orders to 10, limiting the total number of positions the EA can manage according to its internal order-management rules.
🔹 Max buy orders = 5: Limits the maximum number of buy positions to 5, helping control the number of simultaneous long trades opened by the EA.
🔹 Max sell orders = 3: Limits the maximum number of sell positions to 3, restricting the number of simultaneous short trades managed by Forex Play EA MT4.
🔹 Max spread, pips = 3: Sets the maximum permitted spread to 3 pips, preventing the EA from opening new trades when the market spread exceeds the configured threshold.
🔹 TakeProfit, pips = 0: Sets the standard take-profit distance to 0 pips, indicating that a conventional fixed take-profit value is not configured through this parameter.
🔹 StopLoss, pips = 0: Sets the standard stop-loss distance to 0 pips, indicating that a conventional fixed stop-loss value is not configured through this parameter.
🔹 Slippage, pips = 3: Sets the permitted slippage parameter to 3 pips, defining the configured execution tolerance when the EA sends trading orders to the broker.
🔹 Use close by opposite signal = true: Enables opposite-signal closing, allowing the EA to close an existing position when an opposite trading signal is generated according to its internal strategy.
🔹 Use close by MA cross = false: Disables moving average crossover-based position closing, meaning this particular exit condition is not active in the default configuration.
🔹 Use hidden takeprofit = true: Enables hidden take-profit management, allowing the EA to manage its profit target internally rather than necessarily placing a conventional visible take-profit level directly on the broker's trading server.
🔹 Hidden takeprofit, pips = 12: Sets the hidden take-profit target to 12 pips, defining the configured profit distance at which the EA's internal take-profit management may close a position.
🔹 Use hidden stoploss = true: Enables hidden stop-loss management, allowing the EA to monitor the configured protective exit level internally rather than necessarily displaying a conventional stop-loss order on the broker's server.
🔹 Hidden stoploss, pips = 37: Sets the hidden stop-loss distance to 37 pips, defining the configured adverse price movement at which the EA may close a position through its internal risk-management mechanism.
⚙️ Money Management Settings
🔹 Fix lots = 0.0: Sets the fixed lot-size parameter to 0.0, indicating that a positive fixed trading volume is not configured through this input.
🔹 Use MM = true: Enables the Money Management (MM) system, allowing Forex Play EA MT4 to calculate trading volume automatically according to its configured equity-based risk settings.
🔹 % from equity = 2.0: Sets the equity-based money management parameter to 2.0%, configuring the percentage reference used by the EA when calculating position sizes. This should not automatically be interpreted as a guaranteed maximum loss per trade.
🔹 NameEA = 4xPlay: Sets the EA identification name to 4xPlay, providing a custom identifier that can be used within the EA's internal configuration or chart information.
🔹 MagicNumber = 88888: Assigns the Magic Number 88888 to trades managed by Forex Play EA MT4, helping distinguish its positions from manually opened trades and orders belonging to other Expert Advisors.
⚙️ Trailing Stop Settings
🔹 Use trailing = false: Disables the trailing-stop feature, meaning Forex Play EA MT4 will not use this particular trailing-stop mechanism to dynamically adjust stop-loss levels.
🔹 Start point, pips = 10: Sets the trailing-stop activation threshold to 10 pips, defining the configured profit distance at which trailing-stop management can begin when enabled.
🔹 Trailing step, pips = 10: Sets the trailing-stop adjustment interval to 10 pips, controlling the minimum configured price movement between successive trailing-stop adjustments.
🔹 Trailing value, pips = 50: Sets the trailing-stop distance to 50 pips, defining the configured distance between the market price and the trailing protective level when the feature is enabled.
⚙️ Information Panel Settings
🔹 Xcoordinate = 10: Sets the horizontal chart position of the information panel to 10, controlling its placement along the X-axis.
🔹 Ycoordinate = 50: Sets the vertical chart position of the information panel to 50, controlling its placement along the Y-axis.
🔹 ShiftText = 15: Sets the text positioning adjustment to 15, controlling the spacing or offset of displayed information within the EA's chart interface.
🔹 TextColor = White: Sets the information panel text color to White, allowing the EA's displayed information to use white-colored text.
🔹 Text size = 8: Sets the information panel font size to 8, controlling the displayed text size on the MetaTrader 4 chart.
⚙️ Important Configuration Considerations
🔹 Bollinger Bands Entry Conditions: Period = 9 and Deviation = 2.0 configure the primary Bollinger Bands indicator, while Distance from BB for open orders,pips = 2.0 determines the configured entry distance from the bands.
🔹 Additional Confirmation: Use addition checking for open orders = false means the optional moving average confirmation system is disabled, even though its period, method, applied price, and deviation settings are configured.
🔹 Order Limits: Max orders = 10, Max buy orders = 5, and Max sell orders = 3 establish the configured order limits. The EA's internal rules determine how these limits interact.
🔹 Hidden Exit Management: Both Use hidden takeprofit and Use hidden stoploss are enabled, with distances of 12 pips and 37 pips, respectively. These settings should be monitored because hidden exits depend on the EA remaining operational and connected to the trading account.
🔹 Money Management: Use MM = true and % from equity = 2.0 configure equity-based position sizing. Traders should verify the actual lot calculation formula and resulting exposure before using the EA with real capital.
🔹 Trailing Stop: Use trailing = false means the trailing-stop feature is disabled by default, despite the configured activation distance of 10 pips, adjustment step of 10 pips, and trailing distance of 50 pips.
🔹 Spread Protection: Max spread, pips = 3 establishes a spread restriction intended to prevent entries during unfavorable trading conditions with excessive transaction costs.
🔹 Signal Exit Conditions: Use close by opposite signal = true enables opposite-signal exits, while Use close by MA cross = false disables moving average crossover exits.
🔹 Chart Timeframe: The additional checking timeframe is set to current, meaning it follows the chart timeframe rather than using a permanently fixed timeframe.
🔢 Conclusion
Forex Play EA MT4 offers a flexible trading configuration built around Bollinger Bands, moving average calculations, automated money management, and customizable trade exits.
Its default Bollinger Bands settings use Period = 9, Deviation = 2.0, and Weighted price, with an entry distance of 2.0 pips. The EA allows a maximum of 10 orders, including up to 5 buy orders and 3 sell orders, while the maximum spread is configured at 3 pips.
For position management, Forex Play EA MT4 enables hidden take-profit and hidden stop-loss functionality with targets of 12 pips and 37 pips, respectively. Its equity-based money management is enabled with a configured value of 2.0%, while trailing-stop functionality remains disabled by default.
Before running Forex Play EA MT4 on a live account, traders should carefully evaluate the equity-based lot calculation, hidden exit mechanisms, order limits, and spread restrictions. Backtesting and demo testing are recommended to assess its entry behavior, execution quality, and risk exposure under different market conditions.
