🔢 Omega Spline Curve v1.0 – Easy-to-Read Inputs Guide
Omega Spline Curve v1.0 is an MT5 indicator that builds a smooth spline-based price channel, measures upper and lower quantile bands, identifies trend or range regimes, and generates continuation or mean-reversion signals. It also provides forward extrapolation, virtual backtest statistics, dashboard information, alerts and Telegram notifications.

🔢 Installation
🔹 Indicator File — Copy OmegaSplineCurve_v1.0.ex5 into File > Open Data Folder > MQL5 > Indicators in MetaTrader 5, then refresh the Navigator.
🔹 Allow DLL Imports — Enable Tools > Options > Expert Advisors > Allow DLL imports. DLL access is required for the licence check, Telegram functions, and WEB / TELEGRAM buttons.
🔹 Attach Indicator — Drag Omega Spline Curve onto the desired chart, enter the licence key in the Inputs tab, and press OK.
🔹 Minimum History — The chart requires at least Length + AtrLen + 10 bars of history. With the default settings, this equals 230 bars.

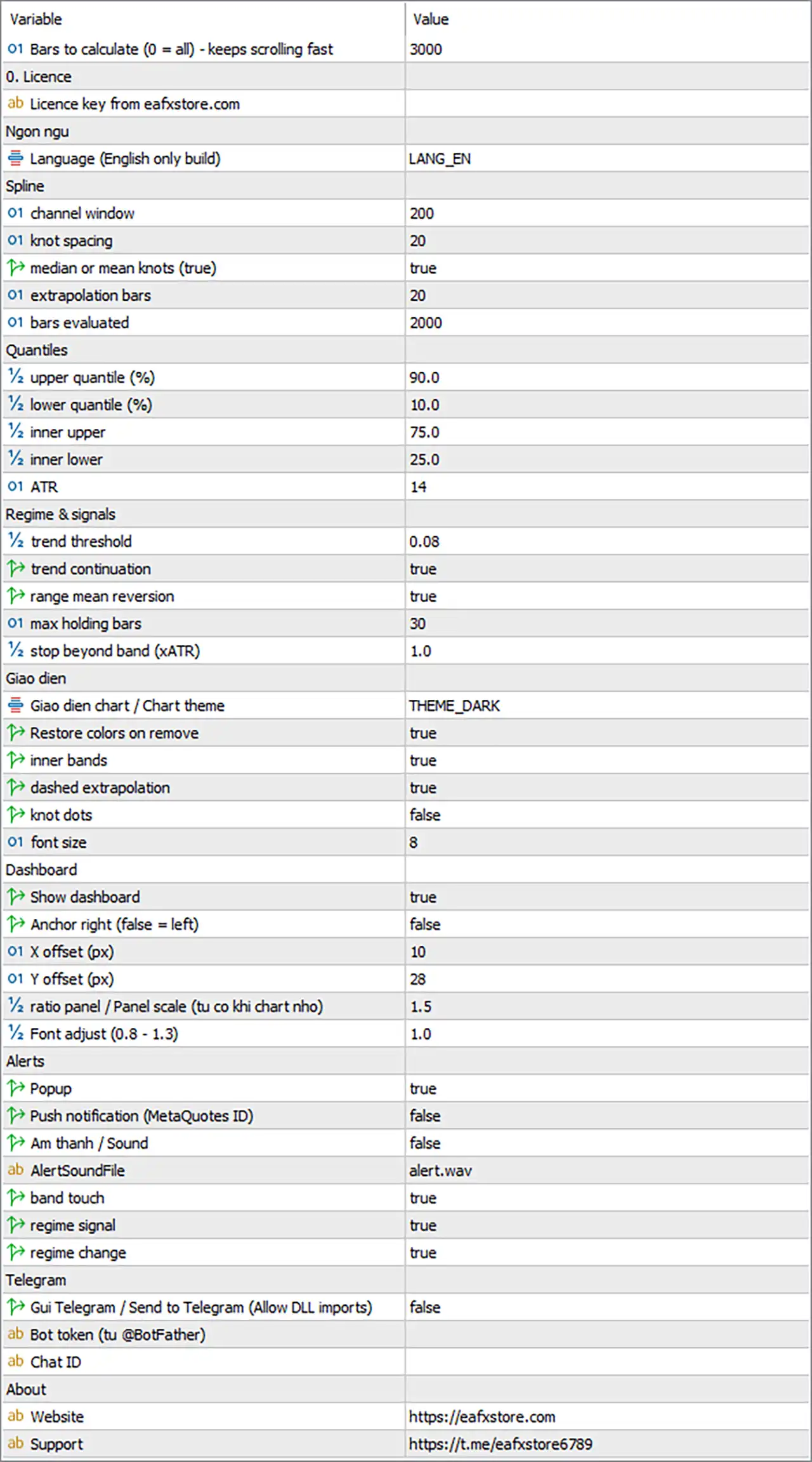

🔢 General & Licence
🔹 Bars to Calculate [MaxBarsCalc] — Default: 3000 — Defines how many recent chart bars are processed when the indicator loads. 0 means all available history. Lower values load faster and keep chart scrolling smoother, while higher values provide more backtest history. Recommended: 2000–5000.
🔹 Licence Key [InpLicenseKey] — Default: empty — Enter the licence key obtained from eafxstore.com. Without a valid key, the indicator does not start and displays the reason in the top-left chart area. The key is verified online at startup and re-checked approximately every 30 minutes. Recommended: enter a valid personal licence key.
🔹 Licence Account Binding — The licence is tied to the trading account. When the trading account is changed, the licence is automatically re-checked.
🔹 Offline Licence Grace Period — If the licence server is temporarily unreachable, the indicator continues running during the grace period following the last successful verification.
🔢 Language
🔹 Language [Lang] — Default: English — This build is English-only. The setting is retained for compatibility and has no effect. Recommended: English.
🔢 Spline Settings
🔹 Channel Window [Length] — Default: 200 — Defines the number of bars used to fit the spline and measure the channel bands. Larger values create a broader and more stable channel for the bigger market picture, while smaller values react faster to recent price swings. Recommended: 100–300.
🔹 Knot Spacing [KnotStep] — Default: 20 — Defines the distance in bars between spline knots. This is the main smoothness control. Larger values create fewer knots and a smoother curve, while smaller values create more knots and allow the curve to follow price more closely. Recommended: 10–30.
🔹 Length / KnotStep Relationship — Keep Length / KnotStep below approximately 60. The indicator supports a maximum of 64 knots.
🔹 Median Knots [RobustKnots] — Default: true — When true, each knot uses the median Close of its segment, helping ignore price spikes and wicks. When false, the average Close is used, which is slightly more responsive but more sensitive to outliers. Recommended: true.

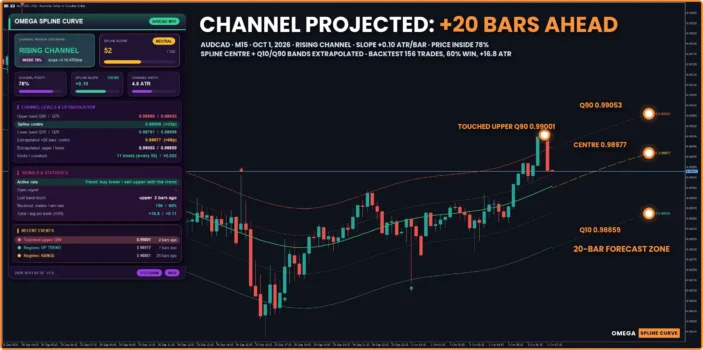

🔹 Extrapolation Bars [ExtrapBars] — Default: 20 — Defines how many future bars receive the dashed projection of the spline centre and bands. It also determines the point reported as Extrapolated on the dashboard. Recommended: 10–30.
🔹 Bars Evaluated [MaxHistory] — Default: 2000 — Defines how many recent bars display the channel and are included in signals and backtesting. Bars older than this remain blank. Recommended: keep equal to or below MaxBarsCalc.
🔢 Quantile Settings
🔹 Upper Quantile % [UpperQ] — Default: 90 — Defines the percentile of price distances above/below the spline used for the upper channel band. At 90, approximately 10% of closes in the calculation window were above this band. Higher values such as 95 create a wider band with fewer and more extreme touches. Recommended: 90.
🔹 Lower Quantile % [LowerQ] — Default: 10 — Defines the percentile used for the lower channel band. At 10, approximately 10% of closes were below the lower band. Recommended: keep symmetrical with UpperQ, such as 90/10, 95/5, or 85/15.
🔹 Inner Upper [InnerUpperQ] — Default: 75 — Defines the percentile used for the dotted inner upper band. Together with the inner lower band, it identifies the core zone where price spends most of its time. Recommended: 75.
🔹 Inner Lower [InnerLowerQ] — Default: 25 — Defines the percentile used for the dotted inner lower band. Keep InnerLowerQ below InnerUpperQ, with both values between LowerQ and UpperQ. Recommended: 25.
🔹 ATR Period [AtrLen] — Default: 14 — Defines the ATR period used to normalise spline slope, channel width, stops, and backtest results. 14 is the standard setting and there is rarely a reason to change it. Recommended: 14.
🔢 Regime & Signals
🔹 Trend Threshold [TrendSlopeATR] — Default: 0.08 — Defines the spline slope per bar, measured in ATR units, required to classify the market as a trend. A slope of >= +0.08 ATR/bar indicates an up trend, while <= -0.08 indicates a down trend. Values between these levels are classified as a range. Recommended: 0.08.
🔹 Higher Trend Threshold — Values around 0.10–0.15 produce more range classifications and fewer false trend signals.
🔹 Lower Trend Threshold — Values around 0.05–0.06 detect trends earlier and classify more conditions as trending.
🔹 Trend Continuation Signals [SignalTrend] — Default: true — Enables signals during trending regimes. In an up trend, the system looks for BUY signals at the lower band; in a down trend, it looks for SELL signals at the upper band. Recommended: true for trend-following use.
🔹 Range Mean-Reversion Signals [SignalRange] — Default: true — Enables signals during range conditions. SELL signals occur at the upper band and BUY signals at the lower band, with the centre of the channel as the target. Recommended: true for range trading.
🔹 Max Holding Bars [MaxHold] — Default: 30 — Maximum number of bars a virtual backtest trade remains open before a time exit occurs if the target, stop, or flip has not happened first. Recommended: 30.
🔹 Stop Beyond Band × ATR [StopATR] — Default: 1.0 — Defines the virtual backtest stop distance beyond the channel band in ATR multiples. A BUY is stopped when price falls StopATR × ATR below the lower band. A SELL is stopped when price rises the same distance above the upper band. Recommended: 1.0; use 1.5 or higher for volatile symbols.
🔢 Display
🔹 Chart Theme [Theme] — Default: Dark — Applies the selected chart colour theme. Available options are None, Dark, Midnight, and Light. The theme controls the background, grid, candles, and bid/ask lines. Recommended: Dark.
🔹 Restore Colors on Remove [RestoreTheme] — Default: true — Restores the original chart colours after the indicator is removed. Recommended: true.
🔹 Inner Bands [ShowInner] — Default: true — Shows or hides the dotted inner quantile bands representing Q75 / Q25. Recommended: true.
🔹 Dashed Extrapolation [ShowExtrap] — Default: true — Shows or hides the dashed forward projection of the spline centre and channel bands together with their price labels. Recommended: true.
🔹 Knot Dots [ShowKnots] — Default: false — Displays small dots at each spline knot. This can help explain how the curve is constructed or assist when tuning KnotStep. Recommended: false for normal trading; true when analysing the spline structure.
🔹 Label Font Size [LabelFont] — Default: 8 — Controls the font size of price labels displayed at the end of the extrapolation. Recommended: 8.
🔢 Dashboard
🔹 Show Dashboard [ShowDash] — Default: true — Shows or hides the on-chart dashboard panel. Recommended: true.
🔹 Anchor Right [DashRight] — Default: false — false places the dashboard from the left side of the chart, while true places it from the right side. Recommended: false.
🔹 X Offset px [DashX] — Default: 10 — Defines the horizontal distance in pixels from the selected chart side. Recommended: 10.
🔹 Y Offset px [DashY] — Default: 28 — Defines the vertical distance in pixels from the top of the chart. Recommended: 28.
🔹 Manual Dashboard Position — The dashboard can also be dragged by its header. A manually dragged position is saved for that chart and takes priority over DashRight, DashX, and DashY.
🔹 Panel Scale [DashScale] — Default: 1.5 — Controls the overall dashboard size. The indicator automatically reduces the scale when the chart is too small, down to a minimum of 0.55. Recommended: 1.0–1.2 on laptops and 1.5 or higher on large/high-resolution screens.
🔹 Font Adjust [DashFontAdj] — Default: 1.0 — Fine-tunes the text size inside the dashboard. Recommended: 0.8–1.3. Increase the value when text looks too small; decrease it when the panel looks crowded.
🔢 Alerts
🔹 Popup [AlertPopup] — Default: true — Displays the standard MetaTrader alert window with sound when an alert is triggered. Recommended: true.
🔹 Push Notification [AlertPush] — Default: false — Sends notifications to the MT5 mobile application. A MetaQuotes ID must be configured under Tools > Options > Notifications. Recommended: false unless mobile notifications are required.
🔹 Sound [AlertSoundOn] — Default: false — Plays a sound file when an alert is triggered. Recommended: false or true according to preference.
🔹 Sound File [AlertSoundFile] — Default: alert.wav — Defines the .wav sound file used for alerts. The file must exist in the terminal's Sounds folder. Recommended: alert.wav.
🔹 Band Touch [AlertTouch] — Default: true — Sends an alert when price touches the upper band, considered overbought, or the lower band, considered oversold. Recommended: true.
🔹 Regime Signal [AlertSignal] — Default: true — Alerts when a new BUY or SELL signal appears. The alert includes the entry price, signal reason, and target centre. Recommended: true.
🔹 Regime Change [AlertRegime] — Default: true — Alerts when the channel changes between UP TREND, DOWN TREND, and RANGE. Recommended: true.
🔢 Telegram
🔹 Send to Telegram [TgEnable] — Default: false — Sends every indicator alert to a Telegram chat. DLL imports are required. When enabled, a TEST TG button appears on the dashboard. Recommended: false unless Telegram alerts are required.
🔹 Bot Token [TgToken] — Default: empty — Enter the token generated by Telegram's @BotFather when creating the bot. Recommended: keep the token private.
🔹 Chat ID [TgChatID] — Default: empty — Defines the destination chat, group, or channel that receives Telegram alerts. Send a message to the bot first. For groups and channels, add the bot as a member or administrator. Recommended: enter the correct destination ID.
Telegram Setup
🔹 Step 1 — Create a Telegram bot with @BotFather and copy the generated bot token.
🔹 Step 2 — Send a message to the bot. For groups or channels, add the bot as a member or administrator.
🔹 Step 3 — Obtain the required Chat ID.
🔹 Step 4 — Enter the values into TgToken and TgChatID, then set TgEnable = true.
🔹 Step 5 — Press TEST TG on the dashboard.
🔹 Telegram Troubleshooting — If the test fails, check the Experts tab for the reason.
🔢 About & Support
🔹 Website [AboutWeb] — Default: https://eafxstore.com — Address opened when the dashboard WEB button is pressed.
🔹 Support [AboutTelegram] — Default: https://t.me/eafxstore6789 — Address opened when the dashboard TELEGRAM button is pressed.
